Industrial Roller Shutters
Industrial Roller Shutters
Industrial roller shutter doors are ideally suited for heavy duty applications. Call County Installations Ltd for a wide range of roller shutters.
3-phase operation
The roller shutter door is raised via a 3-phase, 415 volt, electric motor utilising either a flange mounted chain and sprocket driven or via a direct drive outboard mounted motor. This type of shutter is usually operated via a standard up/down/stop (deadman) push button station mounted on the control panel. For high volume usage we can provide a 100% rated motor which is ideal for applications such as car parks, MOT stations etc. This door also has a manual hand chain override in the event of a power cut. If there is no 3-phase power available on site, there is a single phase, 240 volt alternative however, this motor has limited usage.
Single phase tube motor operation
The ideal roller shutter door for commercial buildings where the door is required to be operate a limited number of times per day.
The door can be operated via a rocker switch, a key switch or a remote control hand held transmitter.
This door also has a manual crank handle override in the event of a power cut.
Hand chain operation
Ideally suited to industrial applications when there is no power supply available. The curtain of the door is manually raised via a continuous haul chain, on a hand chain wheel. This shutter comes with a lockable hand chain cleat to hold the chain in postion. It can be manufactured to an opening size of 6m by 6m.
Push up/Pull down operation
An economic roller shutter door is ideal for smaller apertures where the door will be opened or closed a limited number of times per day. The most common form of locking on this type of door is a double pin lock. The maximum weight of this shutter is 20kg.
Safety Mechanism / Anti Fall-Back Device
All of our roller shutter doors, apart from push up/pull down operation, are supplied with an anti fall back mechanism, either separate or integral to the motor, to ensure that the door cannot fall more than 300mm or out of balance, less than 200 newtons to comply with the latest regulations.
Additional options for the industrial roller shutters

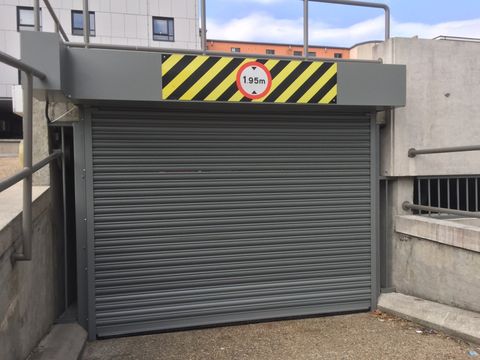

- Perforated lath to allow light and ventilation into areas such as car parks, boiler rooms and more
- Motion sensor or loop detector for operating the shutter as a vehicle approaches
- Key pad
- Lockable external buttons
- Timed return closing
- Personnel access wicket doors, integral to the shutter
- Range of optical and conductive safety edges* and safety photocells
- Remote operation
- Key Switch
- Rocker switch
- Ground lock (additional security)
- Pin lock (additional security)
- And many more
*All shutters fitted with safety edges will be force tested to conform to current legislation.
Attractively finished industrial roller shutters
Our roller shutter doors can be provided with a galvanised finish or can be partially or fully powder coated to almost any standard RAL or BS number. You can also choose to have the external face of the curtain finished in Plastisol Coating HPS200. This coating is available in a wide range of colours. Call us for more details.

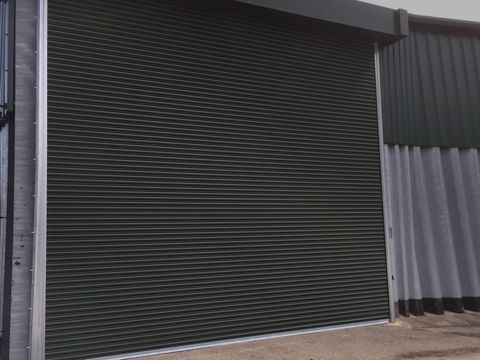

Safety compliant industrial roller shutters
All our doors are tested to comply with the CPR (Construction Products Regulation) EN13241-1:2003 + A1:2011 by a UKAS accredited testing laboratory and is supplied with a DoP (Declaration of Performance). Each door is also fully compliant to the machinery directive 98/37/EC.
